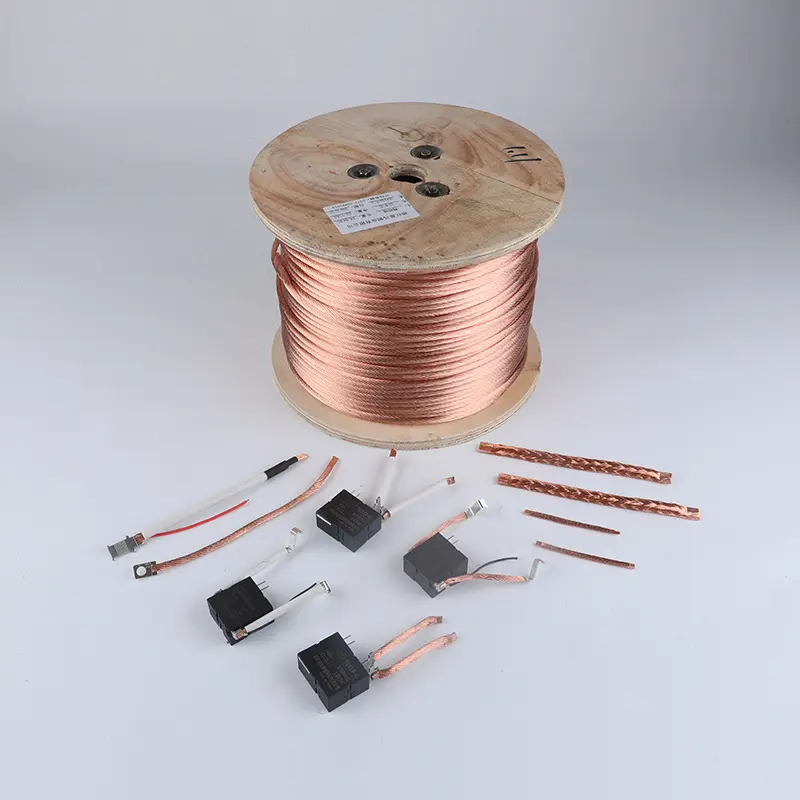

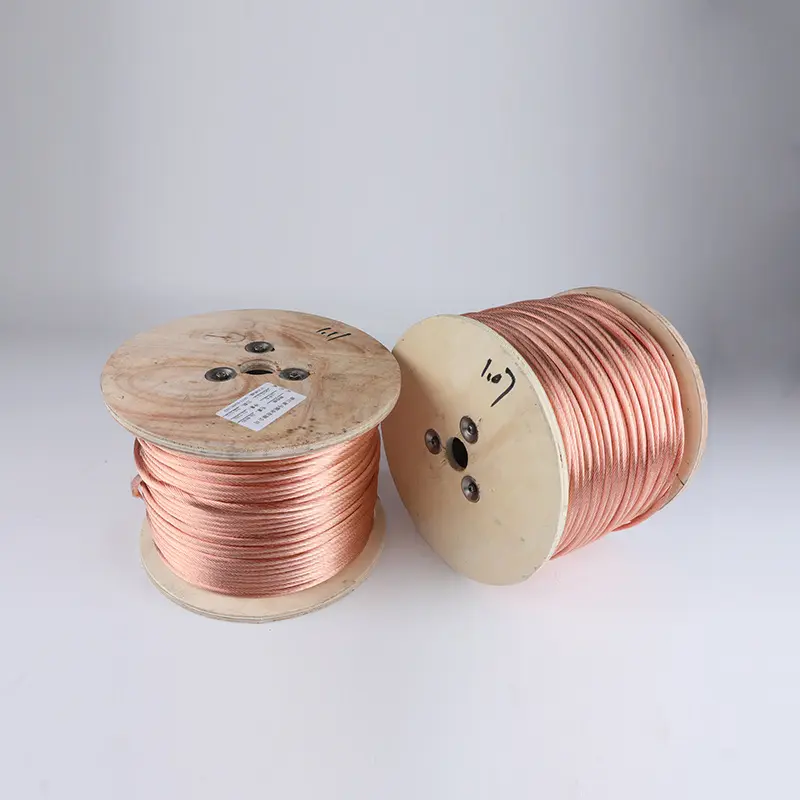

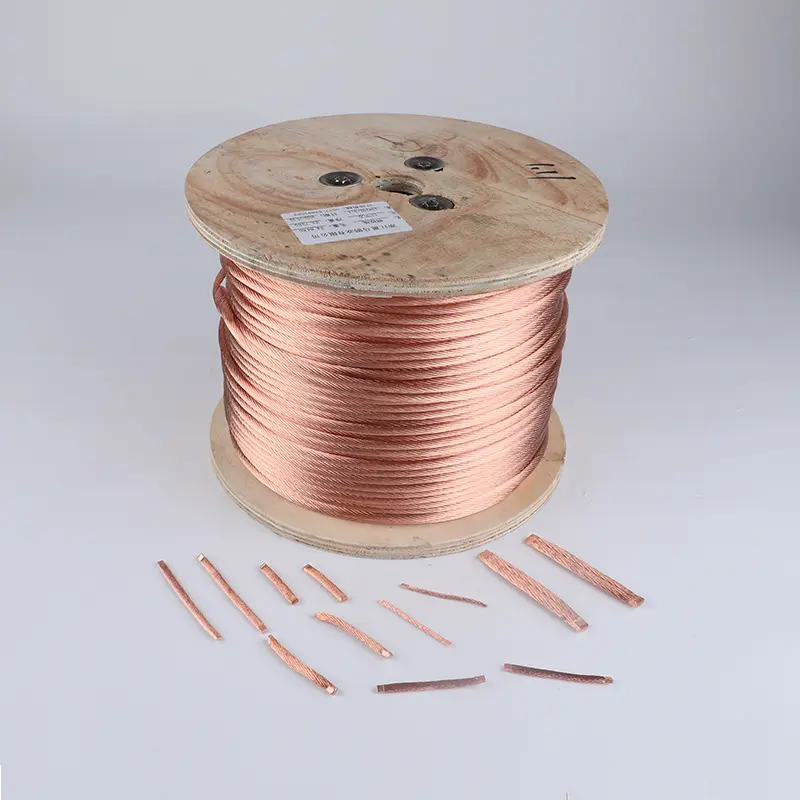

Engineered to provide high-efficiency electrical connections for demanding industrial systems.
Soft copper construction allows for easy bending and shaping in tight spaces and complex configurations.
Twisted and braided structure enhances durability and ensures long-lasting performance.
| Nominal CSA /mm² | Calculated CSA /mm² | Structure | Nominal Outer Diameter (mm) | |
|---|---|---|---|---|
| Total Number of Wires | Strands * Wires * Cores / Dia. | |||
| 0.65 | 0.659 | 336 | 6*56/0.05 | 1.2 |
| 0.75 | 0.765 | 390 | 6*65/0.05 | 1.4 |
| 1.00 | 0.989 | 504 | 7*72/0.05 | 1.7 |
| 1.50 | 1.484 | 756 | 7*108/0.05 | 2.1 |
| 2.50 | 2.307 | 1176 | 7*3*56/0.05 | 2.3 |
| 3.00 | 2.967 | 1512 | 7*3*72/0.05 | 2.5 |
| 4.00 | 3.956 | 2016 | 12*3*56/0.05 | 2.8 |
| 5.00 | 4.946 | 2520 | 15*3*56/0.05 | 3.1 |
| 6.00 | 6.264 | 3192 | 19*3*56/0.05 | 3.5 |
| 8.00 | 8.054 | 4104 | 19*3*72/0.05 | 4.0 |
| 10.00 | 10.067 | 5130 | 19*3*90/0.05 | 4.6 |
| 1.50 | 1.480 | 203 | 7*29/0.1 | 1.8 |
| 2.00 | 1.979 | 252 | 7*36/0.1 | 2.2 |
| 2.50 | 2.530 | 322 | 7*46/0.1 | 2.4 |
| 3.00 | 2.970 | 378 | 7*54/0.1 | 2.7 |
| 4.00 | 3.960 | 504 | 7*72/0.1 | 2.8 |
| 5.00 | 4.940 | 630 | 7*90/0.1 | 3.2 |
| 6.00 | 5.930 | 756 | 12*63/0.1 | 3.7 |
| 8.00 | 7.910 | 1008 | 12*84/0.1 | 4.2 |
| 10.00 | 8.890 | 1260 | 12*105/0.1 | 4.8 |
| 12.00 | 12.011 | 1530 | 15*102/0.1 | 5.4 |
| 16.00 | 16.014 | 2040 | 15*136/0.1 | 6.2 |
| 25.00 | 25.057 | 3192 | 7*3*152/0.1 | 8.0 |
| 2.50 | 2.596 | 147 | 7*21*0.15 | 2.2 |
| 4.00 | 4.080 | 231 | 7*33/0.15 | 3.2 |
| 6.00 | 6.182 | 350 | 7*50/0.15 | 3.7 |
| 10.00 | 10.02 | 567 | 7*3*27/0.15 | 4.5 |
| 16.00 | 16.691 | 945 | 7*3*45/0.15 | 6.5 |
| 25.00 | 24.728 | 1400 | 7*5*40/0.15 | 8.5 |
| 50.00 | 49.013 | 2775 | 15*5*37/0.15 | 12.0 |
